X6036B Universal Milling Machine Industrial Lift Table Milling Machine for Sale

Name: X6036B Universal Milling Machine Industrial Lift Table Milling Machine for Sale
Brand: Zaozhuang NO.1
Price: 6000 USD

China X6036B Universal Milling Machine Industrial Lift Table Milling Machine for Sale factory

Brand Name : Zaozhuang NO.1

Model Number : X6036B

Certification : CE,ISO

Place of Origin : Shandong, China

MOQ : 1 set

Price : 6000USD

Payment Terms : T/T

Supply Ability : 1500 sets/month

Delivery Time : 15 days after getting the deposit.

Packaging Details : Export standard wooden case or as customers' requirement

Working desk size : 1500x360mm

Number of T-slots : 3

Workbench trip : 1000X360X400mm

Spindle speed range : 60-1800(12 steps)

Workbench down stroke : 500mm

Motor Power : 4kw

Contact Now

X6036B Universal Milling Machine Industrial Lift Table Milling Machine for Sale

The X6036B horizontal milling machine can perform both vertical and horizontal milling. Major components such as the base, machine body, worktable, middle slide, and lifting slide are all cast from high-strength materials and undergo artificial aging treatment to ensure long-term stability.It features motorized feed in the X, Y, and Z directions. The X, Y, and Z direction guideways are ultra-high frequency quenched and precision ground for enhanced wear resistance.

Standard configuration:

1.X/Y axis automatic.

2.Ecectric lift of Z axis.

Optional configuration:

1.Vertical milling head.

2.Custom tool holder.

3.Electronic oil pump.

4.Universial dividing head.

5.Three-axis digital display.

Product specification:

PARAMETER ITEM	UNIT	X6036B
Working desk size	mm	1500x360
Number of T-slots	--	3
Workbench trip	mm	1000/360/400
Spindle hole taper	--	7:24/ISO50
Spindle speed range	rpm	60-1800(12 steps)
Worktable feed speed	mm/min	15-370 (8 steps)
Workbench down stroke	mm	500
Worktable vertical lifting speed	mm/min	560
Motor Power	kw	4
Dimensions	mm	2220x1790x1980
Machine weight	kg	2400/2500
Vertical shaft end to table distance	mm	50-550
Spindle center to vertical rail surface distance	mm	320

Details Display:

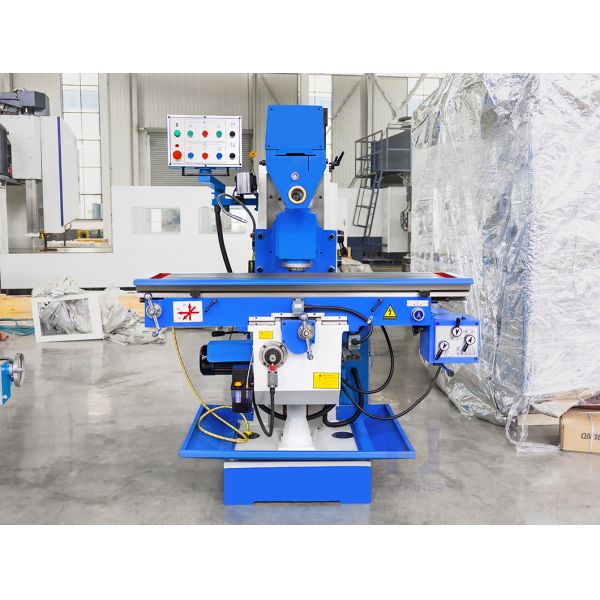

X6036B Universal Milling Machine Industrial Lift Table Milling Machine for Sale

X6036B Universal Milling Machine Industrial Lift Table Milling Machine for Sale Images
